Product Documentation

Document	Pages	Notes
MXT115 External Photos
MXT115 Internal Photos Part 1
MXT115 Internal Photos Part 2
MXT115 Internal Photos Part 3
MXT115 Internal Photos Part 4
MXT115 Product Brochure
MXT115 Quick Start Guide
MXT115 User Manual

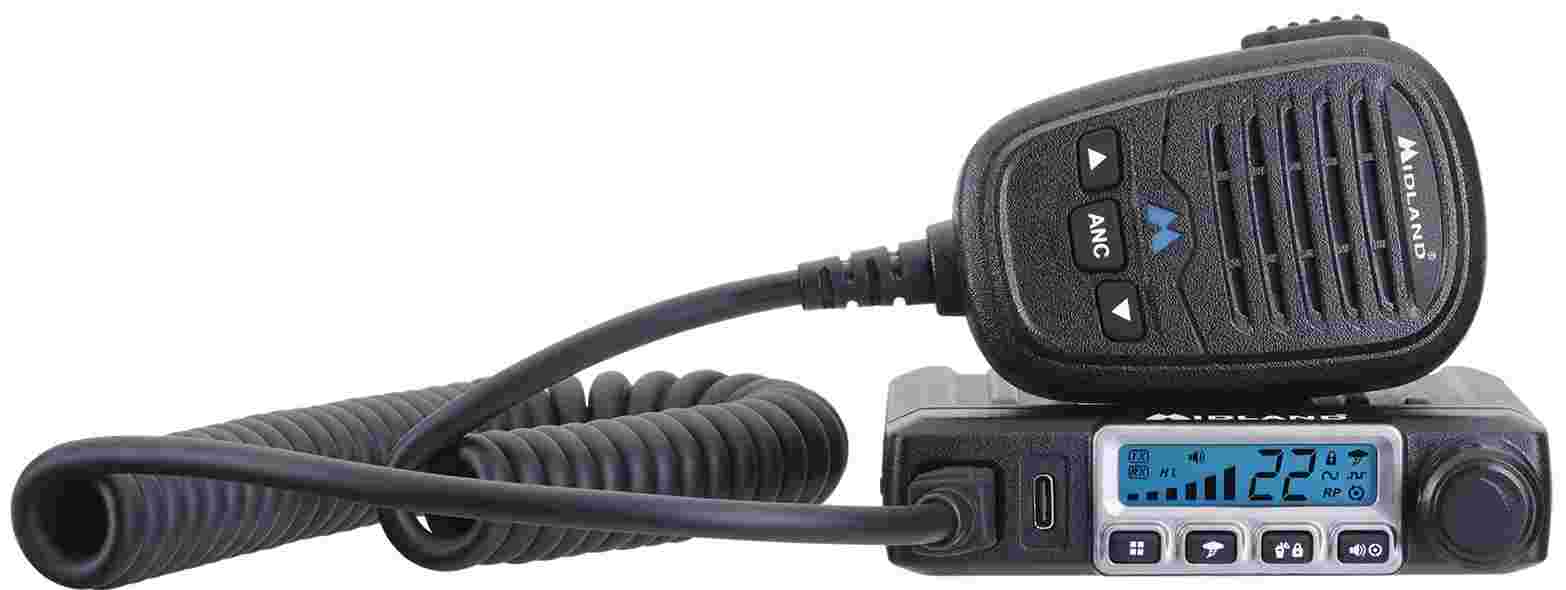

Product

Parameter	Value	Description
Form Factor	Fixed-Mount	The radio is designed to be permanently attached to a surface using fasteners.
Type	Transceiver	The radio can receive and transmit signals.
Width	5 in	The distance between the left and right surfaces of the main body of the radio, excluding protrusions.
Height	1.5 in	The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions.
Depth	4.8 in	The distance between the front and rear surfaces of the main body of the radio, excluding protrusions.
Weight	1.03 lb	The mass of the main body of the radio, including the removable battery or removable front panel.

Tuning System

Parameter	Value	Description
Channel Capacity	15 max	The number of memory channels that can be programmed into the radio.
Scan Type	Channel	The radio's tuning system can scan some or all of the channels programmed into its memory.
Repeater Capable	Yes	Memory channels can have different transmit and receive frequencies, facilitating the use of radio repeaters.

Signaling System

Parameter	Value	Description
CTCSS Tones	38	The number of distinct CTCSS tones supported by the radio.
DCS Codes	104	The number of distinct DCS codes supported by the radio.
Group Call	Yes	Enables a radio user to initiate a conversation with a predetermined group of radio users. All users can hear one another during the conversation.
Roger Beep	Yes	Indicates that a transmitter is capable of emitting a short beep at the end of each transmission.

Audio System

Parameter	Value	Description
Silent Mode	Yes	The radio emits no beeps or other sounds apart from received audio.

Receiver

Parameter	Value	Description
Personal Bands	FRS	Family Radio Service (462.550 - 467.7125 MHz)
	GMRS	General Mobile Radio Service (462.550 - 467.725 MHz)
Broadcast Band	WX	NOAA weather broadcast band (162.400 - 162.550 MHz)
Weather Alerts	Yes	The radio provides severe weather alerts and other S.A.M.E. localized programming.
Operating Frequency	161.65 to 163.275 MHz	The range of frequencies that can be tuned by the receiver.
	462.55 to 462.725 MHz
	467.55 to 467.725 MHz
Monitor Function	Yes	The radio allows the user to manually open the squelch.

Transmitter

Parameter	Value	Description
Personal Band	GMRS	General Mobile Radio Service (462.550 - 467.725 MHz)
Operating Frequency	462.55 to 462.725 MHz
	467.55 to 467.725 MHz
Output Power	15 W max	The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation.

Channel Selector

Parameter	Value	Description
Location	Mic	The channel selector is located on a hand microphone.
Type	Up/Down Buttons	The setting can be increased or decreased by pressing a pair of buttons.

Volume Control

Parameter	Value	Description
Location	Front	The volume control is located on the front panel of the radio.
Type	Rotary Knob	The setting can be adjusted by rotating a round knob.

Squelch Control

Parameter	Value	Description
Type	Menu Item	The setting can be adjusted by using the radio's menu system.

Keypad

Parameter	Value	Description
Location	Front	The keypad is located on the front panel of the radio.
Lockable	Yes	The keypad can be configured in a way that disables the function of most keys.
Audible	Yes	The keypad can be configured to emit a sound each time that a key is pressed.

Display

Parameter	Value	Description
Location	Front	The display is located on the front panel of the radio.
Type	LCD	Liquid Crystal Display with Fluorescent Backlighting
Backlit	Yes	The display device is illuminated for better readability in poor lighting conditions.

Internal Speaker

Parameter	Value	Description
Location	Bottom	The internal speaker is located at the bottom surface of the radio.

Microphone Port

Parameter	Value	Description
Location	Front Panel	The microphone port is located on the front panel of the radio.
Connector Type	RJ11-Female	6-Position RJ11 Female

Speaker Port

Parameter	Value	Description
Location	Rear Panel	The speaker port is located on the rear panel of the radio.
Connector Type	3.5mm Mono Mini	2-Position Miniature Phone Jack
Output Power	4 W max	The maximum power that the speaker port can supply to a load of the correct impedance.
Impedance	8 Ω	The effective resistance of the load at audio frequencies.

Charging Port

Parameter	Value	Description
Location	Front	The charging port is located on the front panel of the radio.
Connector Type	USB-A	USB Type A

Antenna Port

Parameter	Value	Description
Location	Rear Panel	The antenna port is located on the rear panel of the radio.
Connector Type	UHF-Female	UHF Female (SO-239)

Power Supply Port

Parameter	Value	Description
Location	Rear	The power supply port is located on the rear panel of the radio.
Supply Voltage	13.8 V
