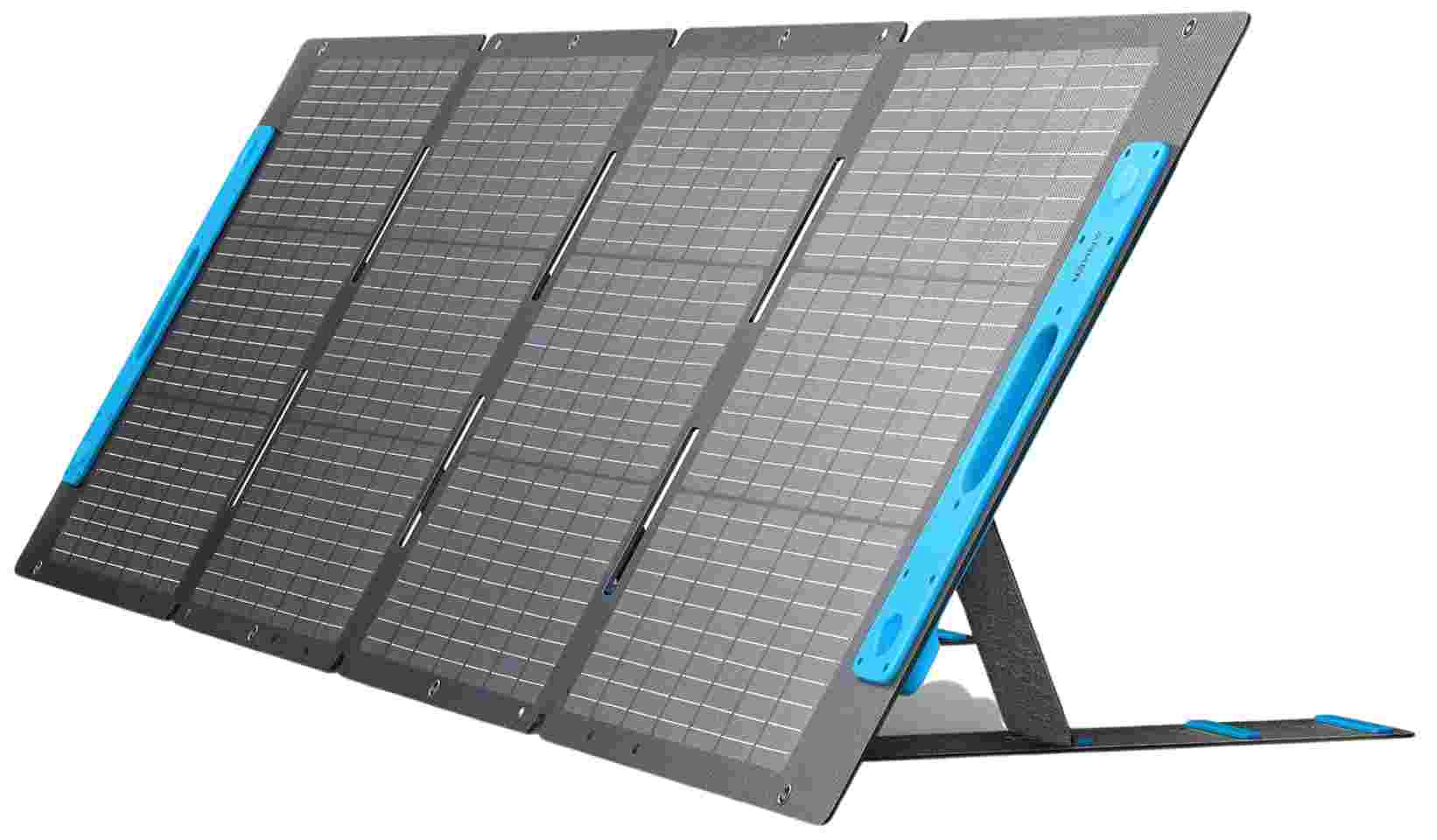

Anker 531 200W Solar Panel

Product Documentation

Document Pages Notes
User Manual 23

Product

Parameter Value Description
Style Folding
Frame Color Black
Shape Rectangular
Height 23.7 in The vertical distance between the top and bottom surfaces of an item that is placed in its conventional orientation.
Width 83.85 in The horizontal distance between the left and right surfaces of an item that is placed in its conventional orientation.
Depth 0.78 in The horizontal distance between the front and rear surfaces of an item that is placed in its conventional orientation.
Area 1987.25 in²
Weight 20.34 lb The weight of the item.

Cell

Parameter Value Description
Type Mono Si The cells are made of Monocrystalline Silicon.

Power

Parameter Value Description
Rated Power at STC 200 W Output Power at Maximum Power Point under Standard Test Conditions
Power Density at STC 156.01 W/m² Power Density under Standard Test Conditions
Efficiency at STC 15.601 % Module Efficiency under Standard Test Conditions

Voltage

Parameter Value Description
Rated Voltage at STC 48 V Output Voltage at Maximum Power Point under Standard Test Conditions
Open Circuit Voltage at STC 57.6 V max Open Circuit Voltage under Standard Test Conditions

Current

Parameter Value Description
Rated Current at STC 4.17 A Output Current at Maximum Power Point under Standard Test Conditions

Junction Box

Parameter Value Description
Solid Ingress Protection Level IP6x The product is dust-tight.
Liquid Ingress Protection Level IPx7 The product is protected against the effects of temporary immersion in water.
