Product Documentation

Document	Pages	Notes
Datasheet	2
Manufacturer's Product Page	1

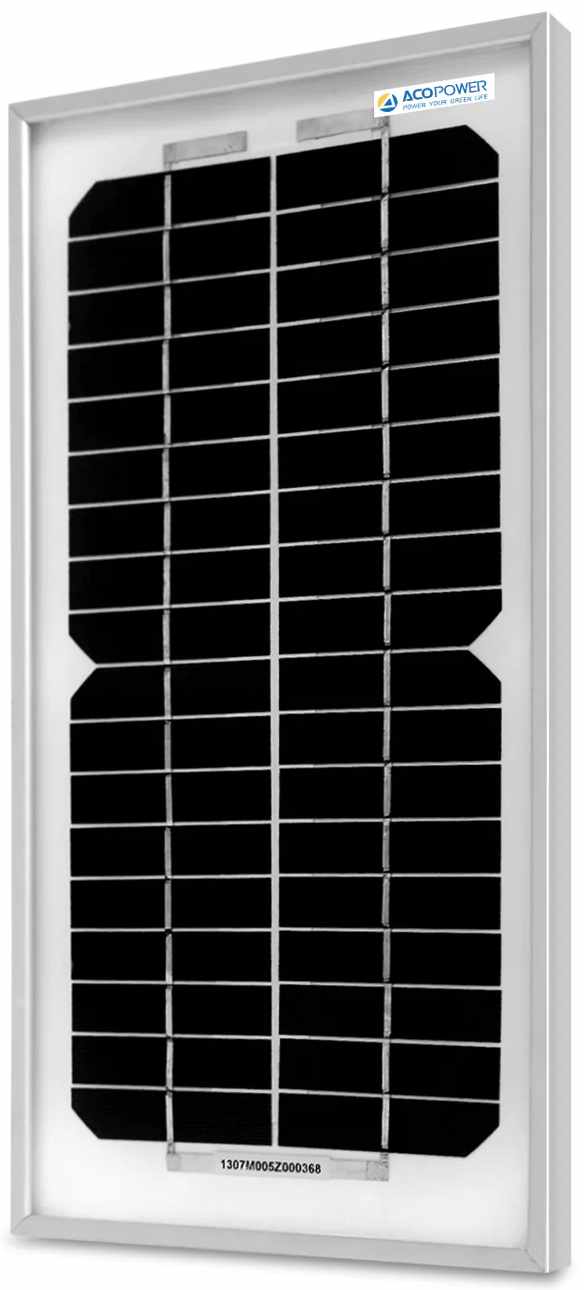

Product

Parameter	Value	Description
Style	Rigid
Frame Color	Silver
Shape	Rectangular
Height	320 mm	The vertical distance between the top and bottom surfaces of an item that is placed in its conventional orientation.
Width	160 mm	The horizontal distance between the left and right surfaces of an item that is placed in its conventional orientation.
Depth	25 mm	The horizontal distance between the front and rear surfaces of an item that is placed in its conventional orientation.
Area	0.0512 m²
Weight	1 kg	The weight of the item.
Wind Load	2400 Pa max
Snow Load	5400 Pa max

Cell

Parameter	Value	Description
Count	72
Type	Mono Si	The cells are made of Monocrystalline Silicon.

Power

Parameter	Value	Description
Rated Power at STC	5 W	Output Power at Maximum Power Point under Standard Test Conditions
Power Density at STC	97.656 W/m²	Power Density under Standard Test Conditions
Efficiency at STC	17.8 %	Module Efficiency under Standard Test Conditions

Voltage

Parameter	Value	Description
Rated Voltage at STC	18 V	Output Voltage at Maximum Power Point under Standard Test Conditions
Open Circuit Voltage at STC	21.4 V max	Open Circuit Voltage under Standard Test Conditions
System Voltage	1000 V max
Open Circuit Voltage at Tmin	27.77 V	The open-circuit voltage at the minimum operating temperature.

Current

Parameter	Value	Description
Rated Current at STC	0.28 A	Output Current at Maximum Power Point under Standard Test Conditions
Short Circuit Current at STC	0.31 A max	Short Circuit Voltage under Standard Test Conditions
System Fuse Rating	10 A max

Temperature

Parameter	Value	Description
Operating Temperature	-40 to 85 °C	The range of temperatures in which the product is designed to be operated.
NOCT	45 °C
Temp Coeff of Power	-0.45 %/°C	Temperature Coefficient of Power
Temp Coeff of Voltage	-0.35 %/°C	Temperature Coefficient of Open-Circuit Voltage
Temp Coeff of Current	0.05 %/°C	Temperature Coefficient of Short-Circuit Current

Junction Box

Parameter	Value	Description
Solid Ingress Protection Level	IP6x	The product is dust-tight.
Liquid Ingress Protection Level	IPx5	The product is protected against water jets.

Positive Lead

Parameter	Value	Description
Connector Type	Unterminated

Negative Lead

Parameter	Value	Description
Connector Type	Unterminated
