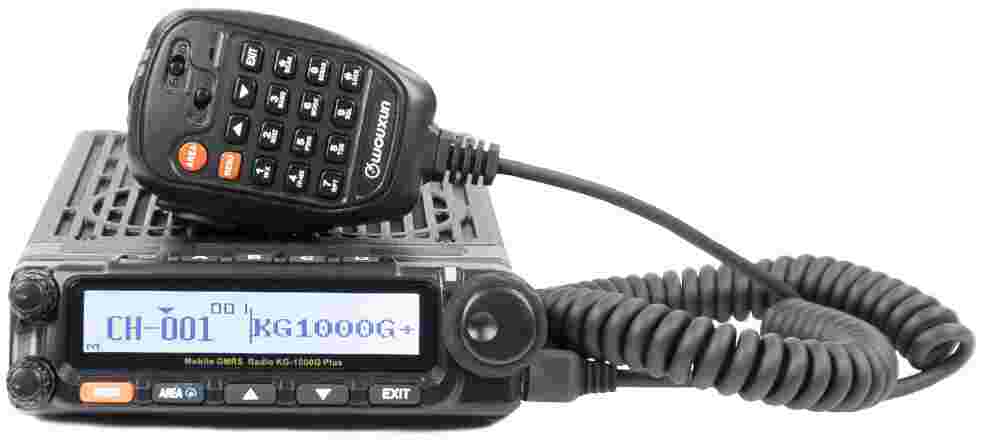

Wouxun KG-1000G Mobile GMRS Transceiver

Product Documentation

Document	Pages	Notes
KG-1000G - FCC External Photos
KG-1000G - FCC Test Report
KG-1000G - User Manual

Product

Parameter	Value	Description
Form Factor	Fixed-Mount	The radio is designed to be permanently attached to a surface using fasteners.
Type	Transceiver	The radio can receive and transmit signals.
Width	140 mm	The distance between the left and right surfaces of the main body of the radio, excluding protrusions.
Height	44 mm	The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions.
Depth	207 mm	The distance between the front and rear surfaces of the main body of the radio, excluding protrusions.
Weight	1437.8 g	The mass of the main body of the radio, including the removable battery or removable front panel.
Operating Temperature	-20 to 60 °C	The range of temperatures in which the product is designed to be operated.
Removable Control Head	Yes

Tuning System

Parameter	Value	Description
Channel Capacity	999 max	The number of memory channels that can be programmed into the radio.
Channel Name Length	8 max	The maximum number of characters that can be used in a channel name.
Dual Watch	Yes	The radio can monitor two frequencies at the same time.
Dual Receive	Yes	The radio can simultaneously receive signals transmitted on two different frequencies.
Scan Types	Program	The radio's tuning system can scan all channel frequencies between lower and upper frequency limits.
	Priority	The radio's tuning system can check prioritized channels more frequently while performing a channel scan.
	Tone	The radio's tuning system can detect and identify the CTCSS tone or DCS code being received on a particular frequency.
Repeater Capable	Yes	Memory channels can have different transmit and receive frequencies, facilitating the use of radio repeaters.
Repeater Forwarding	Yes	The transceiver is equipped to permit creation of a simple repeater by directly connecting two units which serve as receiver and transmitter.
VFO Mode	Yes	The radio allows direct frequency selection.

Signaling System

Parameter	Value	Description
Remote Actions	Stun	Temporarily disables the receiving radio until it is revived.
Remote Actions	Kill	Permanently disables the receiving radio until a technician reprograms it.
CTCSS Tones	50	The number of distinct CTCSS tones supported by the radio.
DCS Codes	105	The number of distinct DCS codes supported by the radio.
PTT ID	Yes	The radio supports Automatic Number Identification
Selective Call	Yes	Enables one radio user to initiate a conversation with another specific user.
Group Call	Yes	Enables a radio user to initiate a conversation with a predetermined group of radio users. All users can hear one another during the conversation.
Roger Beep	Yes	Indicates that a transmitter is capable of emitting a short beep at the end of each transmission.

Audio System

Parameter	Value	Description
Output Power	3 W max
Companding	Yes	An audio processing technique that mitigates the effects of a channel with limited dynamic range.
Voice Inversion	Yes	An analog method of obscuring the content of a transmission.
Voice Prompts	Yes

Receiver

Parameter	Value	Description
Personal Bands	FRS	Family Radio Service (462.550 - 467.7125 MHz)
Personal Bands	GMRS	General Mobile Radio Service (462.550 - 467.725 MHz)
Broadcast Bands	FM	FM broadcast band (88 - 108 MHz)
Broadcast Bands	WX	NOAA weather broadcast band (162.400 - 162.550 MHz)
Amateur Bands	6m	Amateur 6-meter band (50.000 - 54.000 MHz)
	2m	Amateur 2-meter band (144.000 - 148.000 MHz)
	70cm	Amateur 70 cm band (420.000 - 450.000 MHz)
	33cm	Amateur 33 cm band (902.000 - 928.000 MHz)
LMR Bands	VHF	Land mobile VHF high band (150 - 174 MHz)
	UHF	Land mobile UHF band (450 - 470 MHz)
	700 W	Land mobile 700 broadband (758 - 769 / 788 - 799 MHz)
	700 N	Land mobile 700 narrowband (768 - 775 / 798 - 805 MHz)
	800 MHz	Land mobile 800 MHz band (809 - 815 / 854 - 860 MHz)
Marine Bands	VHF	Marine VHF band (156.050 - 162.025 MHz)
Marine Bands	UHF	Marine UHF Band (457.5125 - 457.5875 and 467.5125 - 467.5875)
Aviation Band	Comm	Aviation - VHF communication band (118 - 136.975 MHz)
Operating Frequency	50 to 54.995 MHz	The range of frequencies that can be tuned by the receiver.
	65 to 108 MHz
	108 to 180.995 MHz
	320 to 349.995 MHz
	400 to 479.995 MHz
	700 to 824 MHz
	849 to 869 MHz
	894 to 960 MHz
Adjacent Channel Selectivity	60 dB min	The ability of a receiver to discriminate between a desired signal and an undesired signal in an adjacent channel.
SNR	40 dB min	Signal-to-Noise Ratio
Spurious Rejection	70 dB min	The ratio of a receiver's response to a signal at a desired frequency and its response to signals at other frequencies that cause a response.
Intermodulation Rejection	60 dB min	The ability of a receiver to reject intermodulation products produced by the mixing of two or more signals at the input to the receiver.
Audio Distortion	5 % max
Audio Response	-3 to 1 dB	The degree of precision with which the audio signal level of a receiver responds to the frequency deviation of an FM signal.
Monitor Function	Yes	The radio allows the user to manually open the squelch.

Transmitter

Parameter	Conditions	Value	Description
	Tuning System
	Channel Bandwidth
Personal Band		GMRS	General Mobile Radio Service (462.550 - 467.725 MHz)
Operating Frequency		462.55 to 462.725 MHz
Operating Frequency		467.55 to 467.725 MHz
Output Power		50 W max	The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation.
Measured Power		45.29 W max	Actual output power measured by a telecommunication certification body (TCB) and reported to the Federal Communications Commission.
Spurious Emissions		-60 dB max	Emission on a frequency or frequencies which are outside the necessary bandwidth.
Adjacent Channel Power		-60 dB max
Audio Response		-3 to 1 dB	The degree of precision with which the frequency deviation of a transmitter responds to a designated audio frequency signal level.
Emission Types	12.5 kHz	11K0F3E	11 kHz occupied bandwidth, FM analog voice
Emission Types	25 kHz	16K0F3E	16 kHz occupied bandwidth, FM analog voice
Busy Channel Lockout		Yes	Indicates that a transmitter can be prevented from operating when a receiver detects activity on the tuned frequency.
Overtime Alarm		Yes	Warns the user when the Timeout Timer is about to be exceeded.
Timeout Timer		Yes	Indicates that a radio is capable of limiting the length of each transmission.

Channel Selector

Parameter	Value	Description
Location	Front	The channel selector is located on the front panel of the radio.
Type	Rotary Knob	The setting can be adjusted by rotating a round knob.

Volume Control (A Area)

Parameter	Value	Description
Location	Front	The volume control is located on the front panel of the radio.
Type	Rotary Knob	The setting can be adjusted by rotating a round knob.

Volume Control (B Area)

Parameter	Value	Description
Location	Front	The volume control is located on the front panel of the radio.
Type	Rotary Knob	The setting can be adjusted by rotating a round knob.

Squelch Control (Mic Keypad)

Parameter	Value	Description
Location	Mic	The squelch control is located on a handheld microphone.
Type	Keypad	The setting can be adjusted by using a numeric keypad.

Squelch Control (Mic Up/Down)

Parameter	Value	Description
Location	Mic	The squelch control is located on a handheld microphone.
Type	Up/Down Buttons	The setting can be increased or decreased by pressing a pair of buttons.

Keypad

Parameter	Value	Description
Location	Mic	The keypad is located on a handheld microphone.
DTMF Capable	Yes	The keypad is capable of generating DTMF tones.
Backlit	Yes	The keypad keys are illuminated for better visibility in low light.
Lockable	Yes	The keypad can be configured in a way that disables the function of most keys.
Audible	Yes	The keypad can be configured to emit a sound each time that a key is pressed.

Display

Parameter	Value	Description
Location	Front	The display is located on the front panel of the radio.
Type	LCD	Liquid Crystal Display with Fluorescent Backlighting
Backlit	Yes	The display device is illuminated for better readability in poor lighting conditions.
Background Colors	3	The number of background colors from which to choose.

Internal Speaker (Mic)

Parameter	Value	Description
Location	Mic	The internal speaker is located inside a handheld microphone (i.e. a speaker mic)

Internal Speaker (Top Left)

Parameter	Value	Description
Location	Top	The internal speaker is located at the top surface of the radio.

Internal Speaker (Top Right)

Parameter	Value	Description
Location	Top	The internal speaker is located at the top surface of the radio.

Data Port

Parameter	Value	Description
Location	Left Side	The data port is located on the left side of the radio.
Connector Type	RJ45-Female

Programming Port

Parameter	Value	Description
Location	Left Side	The programming port is located on the left side of the radio.

Antenna Port

Parameter	Value	Description
Location	Rear Panel	The antenna port is located on the rear panel of the radio.
Connector Type	UHF-Female	UHF Female (SO-239)
Impedance	50 Ω

Power Supply Port

Parameter	Value	Description
Location	Rear	The power supply port is located on the rear panel of the radio.
Connector Type	T-Style-Male	2-Position Male T-Style Power Connector
Supply Voltage	13.8 V +/-15%
Low Voltage Alerts	Yes	The radio provides an audible and/or visible indication that the supply voltage is critically low and shutdown is imminent.
