Product Documentation

Document	Pages	Notes
Datasheet	3

Product

Parameter	Value	Description
Operating Frequency	450 to 470 MHz

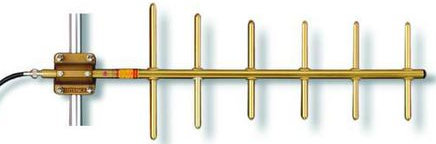

Type	Yagi
Center Frequency	460 MHz
Bandwidth	20 MHz	The frequency range occupied by a modulated carrier.
Front-to-Back Ratio	20 dB	Ratio of forward gain to backward gain.
Personal Band	GMRS	General Mobile Radio Service (462.550 - 467.725 MHz)
Land Mobile Band	UHF	Land mobile UHF band (450 - 470 MHz)
Weight	1.81 kg	The weight of the item.
Wind Surface Area	0.0429 m²
Wind Survival	201 kph max
Operating Temperature	-40 to 85 °C	The range of temperatures in which the product is designed to be operated.
Return Loss	10 dB min

Signal Propagation

Parameter	Value	Description
Power	300 W max	The input power limit of an antenna.
Gain	12.2 dBi	The ability of an antenna to radiate RF energy in a specific direction.
ERP	3034.738 W max	Effective Radiated Power
Pattern Type	Directional
Polarization	Vertical
Horizontal Beamwidth	67 °
Vertical Beamwidth	57 °

Feedpoint

Parameter	Value	Description
Connector Type	N-Female	Type N Female
Impedance	50 Ω	The effective resistance of an antenna to alternating current at a specific frequency due to the combined effects of ohmic resistance, inductance, and capacitance.
