Product Documentation

Document	Pages	Notes
Icom IC-7300 Basic Manual	80
Icom IC-7300 Full Manual	180
Icom IC-7300 Product Brochure	2
Icom IC-7610 RF Direct Sampling Brochure	5	Contains IC-7300 display specifications not found in the IC-7300 literature.

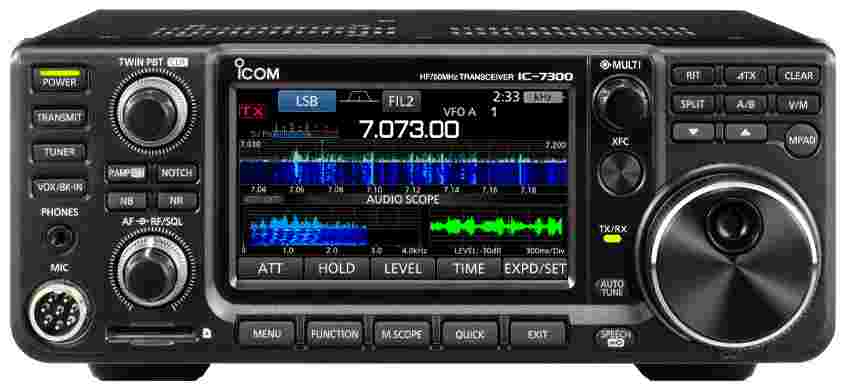

Product

Parameter	Value	Description
Form Factor	Desktop	The radio is designed to rest on a horizontal surface during use but is not designed for portability.
Type	Transceiver	The radio can receive and transmit signals.
Width	240 mm	The distance between the left and right surfaces of the main body of the radio, excluding protrusions.
Height	94 mm	The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions.
Depth	238 mm	The distance between the front and rear surfaces of the main body of the radio, excluding protrusions.
Weight	4.2 kg	The mass of the main body of the radio, including the removable battery or removable front panel.
Operating Temperature	-10 to 60 °C	The range of temperatures in which the product is designed to be operated.

Tuning System

Parameter	Value	Description
Channel Capacity	101 max	The number of memory channels that can be programmed into the radio.
Modes	CW	Radiotelegraphy over Continuous Wave, typically with Morse Encoding
	SSB	Analog Voice on Single Sideband
	AM	Analog Voice with Amplitude Modulation
	FM	Analog Voice with Frequency Modulation
	RTTY	Digital Text with Radioteletype Encoding
Frequency Resolution	1 Hz	The size of the tuning increments or discrete frequency steps of a digital receiver.

Receiver

Parameter	Conditions				Value	Description
	Tuning System	Receiver
	Operating Mode	Operating Frequency	SNR	SINAD
Amateur Bands					160m	Amateur 160-meter band (1.800 - 2.000 MHz)
					80m	Amateur 80-meter band (3.500 - 4.000 MHz)
					60m	Amateur 60-meter band (5.332 - 5.405 MHz)
					40m	Amateur 40-meter band (7.000 - 7.300 MHz)
					30m	Amateur 30-meter band (10.100 - 10.150 MHz)
					20m	Amateur 20-meter band (14.000 - 14.350 MHz)
					17m	Amateur 17-meter band (18.068 - 18.168 MHz)
					15m	Amateur 15-meter band (21.000 - 21.450 MHz)
					12m	Amateur 12-meter band (24.890 - 24.990 MHz)
					10m	Amateur 10-meter band (28.000 - 28.700 MHz)
					6m	Amateur 6-meter band (50.000 - 54.000 MHz)
Type					Direct Sampling	Direct RF Sampling
Operating Frequency					0.03 to 74.8 MHz	The range of frequencies that can be tuned by the receiver.
Sensitivity Threshold	AM	0.5 to 1.8 MHz	10 dB		12.6 µV max	The magnitude of the smallest RF signal that a receiver can detect.
	AM	1.8 to 29.999 MHz	10 dB		2 µV max
	AM	50 to 54 MHz	10 dB		1 µV max
	CW/SSB	50 to 54 MHz	10 dB		0.13 µV max
	FM	28 to 29.7 MHz		12 dB	0.5 µV max
	FM	50 to 54		12 dB	0.25 µV max
	CW/SSB	1.8 to 29.999 MHz	10 dB		0.16 µV max
Intermediate Frequency					36 kHz
Reciprocal Mixing Dynamic Range					100 dB min

Transmitter

Parameter	Conditions		Value	Description
	Tuning System	Transmitter
	Operating Mode	Amateur Band
Amateur Band			160m	Amateur 160-meter band (1.800 - 2.000 MHz)
Output Power	AM		1 to 25 W	The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation.
	CW/SSB/FM/RTTY		2 to 100 W
Spurious Emissions		6m	-63 dB max	Emission on a frequency or frequencies which are outside the necessary bandwidth.
		160m/80m/60m/40m/30m/20m/17m/15m/12m/10m	-50 dB max
Carrier Suppression			50 dB min	The degree to which the carrier signal is suppressed in a single-sideband radio signal.
Unwanted Sideband Suppression			50 dB min	The amount by which the unwanted sideband of the input signal is attenuated in the output of the modulator, relative to the desired sideband.

Display

Parameter	Value	Description
Type	TFT	Liquid-Crystal Display with Thin-Film Transistor technology and CCFL (cool compound fluorescent lamp) backlighting
Size	4.3 in	Diagonal measurement of a display
Horizontal Resolution	480 px	The number of pixels displayed along a display's horizontal axis.
Vertical Resolution	272 px	The number of pixels displayed along a display's vertical axis.
Touch Sensitive	Yes	The display responds to pressure from a finger or a stylus.

Microphone Port

Parameter	Value	Description
Connector Type	Round8-Male	8-Position Round Male
Impedance	600 Ω

Speaker Port

Parameter	Value	Description
Location	Rear Panel	The speaker port is located on the rear panel of the radio.
Connector Type	3.5mm Stereo Mini	3-Position Miniature Phone Jack

Antenna Port

Parameter	Value	Description
Location	Rear Panel	The antenna port is located on the rear panel of the radio.
Connector Type	UHF-Female	UHF Female (SO-239)
Impedance	50 Ω

Antenna Tuner

Parameter	Value	Description	Notes
Load Impedance	16.7 to 150 Ω		unbalanced
Operating Frequency	1.9 to 50 MHz
Tuning Time	2 to 3 s

Morse Code Key Port

Parameter	Value	Description
Connector Type	Stereo Headphone Jack	1/4" stereo headphone jack
Location	Rear Panel	The Morse code key port is located on the rear panel of the radio.
