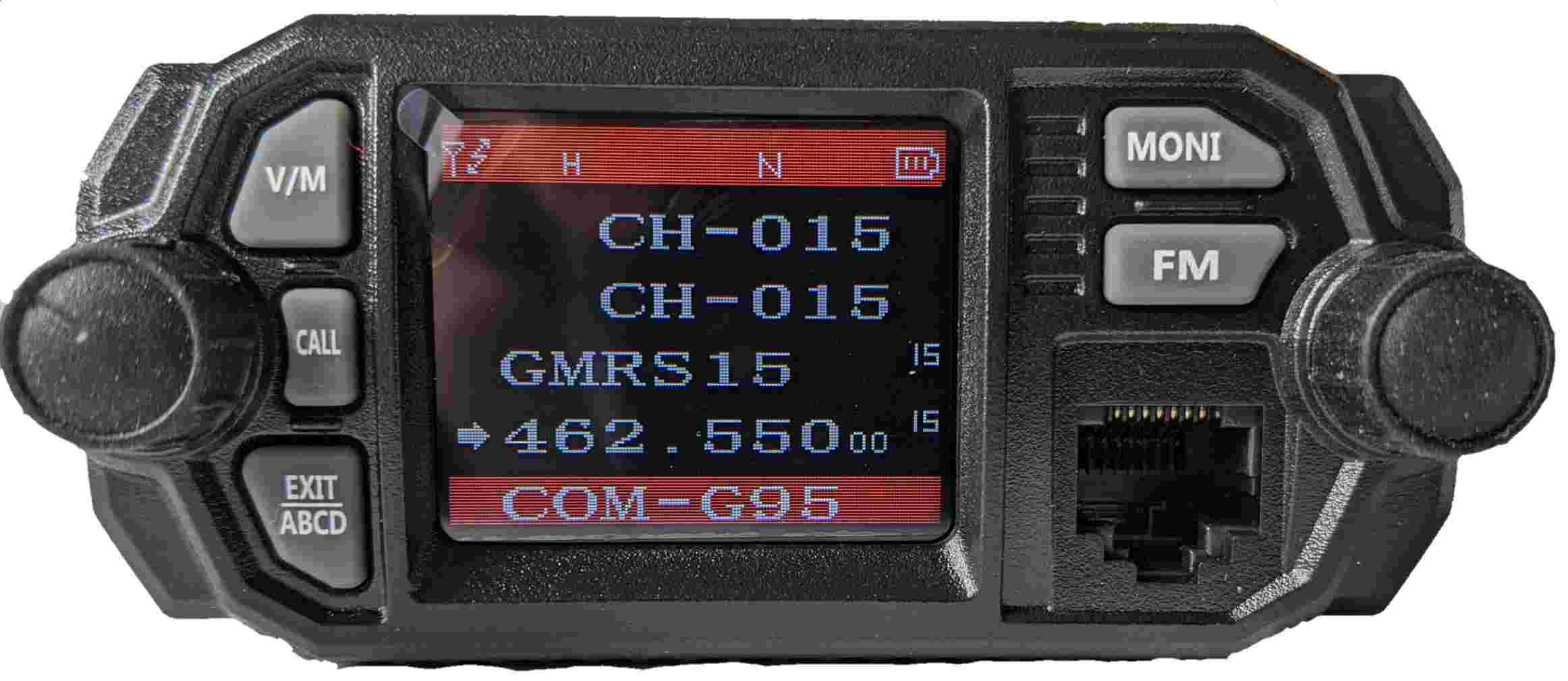

TheCOM COM-G95 Mobile GMRS Transceiver

Product Documentation

Document Pages Notes
COM-G95 External Photos
COM-G95 Internal Photos
COM-G95 User Manual

Product

Parameter Value Description
Form Factor Fixed-Mount The radio is designed to be permanently attached to a surface using fasteners.
Type Transceiver The radio can receive and transmit signals.
Width 5.7 in The distance between the left and right surfaces of the main body of the radio, excluding protrusions.
Height 1.85 in The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions.
Depth 7.5 in The distance between the front and rear surfaces of the main body of the radio, excluding protrusions.
Weight 998 g The mass of the main body of the radio, including the removable battery or removable front panel.
Operating Temperature -20 to 60 °C The range of temperatures in which the product is designed to be operated.

Tuning System

Parameter Value Description
Channel Capacity 200 max The number of memory channels that can be programmed into the radio.
Channel Bandwidths 12.5 kHz The radio's tuning system supports channel spacing of 12.5 kHz.
25 kHz The radio's tuning system supports channel spacing of 25 kHz.
Scan Type Channel The radio's tuning system can scan some or all of the channels programmed into its memory.
Repeater Capable Yes Memory channels can have different transmit and receive frequencies, facilitating the use of radio repeaters.
Repeater Forwarding Yes The transceiver is equipped to permit creation of a simple repeater by directly connecting two units which serve as receiver and transmitter.
VFO Mode Yes The radio allows direct frequency selection.

Signaling System

Parameter Value Description
Signaling Methods 2-Tone Two-tone sequential signaling
5-Tone 5/6/7-tone sequential signaling
DTMF Dual Tone Multi Frequency
PTT ID Yes The radio supports Automatic Number Identification

Audio System

Parameter Value Description
Output Power 2 W max
Voice Inversion Yes An analog method of obscuring the content of a transmission.

Receiver

Parameter Conditions Value Description
Tuning System
Channel Bandwidth
Personal Bands FRS Family Radio Service (462.550 - 467.7125 MHz)
GMRS General Mobile Radio Service (462.550 - 467.725 MHz)
Broadcast Bands FM FM broadcast band (88 - 108 MHz)
WX NOAA weather broadcast band (162.400 - 162.550 MHz)
Amateur Bands 2m Amateur 2-meter band (144.000 - 148.000 MHz)
70cm Amateur 70 cm band (420.000 - 450.000 MHz)
LMR Bands VHF Land mobile VHF high band (150 - 174 MHz)
UHF Land mobile UHF band (450 - 470 MHz)
Marine Bands VHF Marine VHF band (156.050 - 162.025 MHz)
UHF Marine UHF Band (457.5125 - 457.5875 and 467.5125 - 467.5875)
Operating Frequency 136 to 174 MHz The range of frequencies that can be tuned by the receiver.
400 to 480 MHz
462.55 to 462.725 MHz
467.55 to 467.725 MHz
Sensitivity Threshold 12.5 kHz 0.35 µV max The magnitude of the smallest RF signal that a receiver can detect.
25 kHz 0.25 µV max
Adjacent Channel Selectivity 12.5 kHz 60 dB min The ability of a receiver to discriminate between a desired signal and an undesired signal in an adjacent channel.
25 kHz 70 dB min
SNR 12.5 kHz 40 dB min Signal-to-Noise Ratio
25 kHz 45 dB min
Spurious Rejection 70 dB min The ratio of a receiver's response to a signal at a desired frequency and its response to signals at other frequencies that cause a response.
Intermodulation Rejection 12.5 kHz 60 dB min The ability of a receiver to reject intermodulation products produced by the mixing of two or more signals at the input to the receiver.
25 kHz 65 dB min
Audio Distortion 5 % max
Audio Response -3 to 1 dB The degree of precision with which the audio signal level of a receiver responds to the frequency deviation of an FM signal.
Monitor Function Yes The radio allows the user to manually open the squelch.

Transmitter

Parameter Conditions Value Description
Tuning System
Channel Bandwidth
Personal Band GMRS General Mobile Radio Service (462.550 - 467.725 MHz)
Operating Frequency 462.55 to 462.725 MHz
467.55 to 467.725 MHz
Frequency Drift 2.5 ppm The amount that a transmitter's frequency varies from its nominal value.
Output Power 20 W max The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation.
Measured Power 19.28 W max Actual output power measured by a telecommunication certification body (TCB) and reported to the Federal Communications Commission.
Duty Cycle 50 % max The percentage of time that the transmitter can be operated without overheating.
Signal-to- Noise Ratio 12.5 kHz 36 dB min
25 kHz 40 dB min
Intermodulation Distortion 5 % max
Spurious Emissions -60 dB max Emission on a frequency or frequencies which are outside the necessary bandwidth.
Adjacent Channel Power 12.5 kHz -60 dB max
25 kHz -70 dB max
Audio Response -3 to 1 dB The degree of precision with which the frequency deviation of a transmitter responds to a designated audio frequency signal level.
Audio Distortion 5 % max
Emission Types 12.5 kHz 11K0F3E 11 kHz occupied bandwidth, FM analog voice
25 kHz 16K0F3E 16 kHz occupied bandwidth, FM analog voice
VOX Yes
Busy Channel Lockout Yes Indicates that a transmitter can be prevented from operating when a receiver detects activity on the tuned frequency.
Timeout Timer Yes Indicates that a radio is capable of limiting the length of each transmission.

Channel Selector (Front)

Parameter Value Description
Location Front The channel selector is located on the front panel of the radio.
Type Rotary Knob The setting can be adjusted by rotating a round knob.

Channel Selector (Mic)

Parameter Value Description
Location Mic The channel selector is located on a hand microphone.
Type Up/Down Buttons The setting can be increased or decreased by pressing a pair of buttons.

Volume Control

Parameter Value Description
Location Front The volume control is located on the front panel of the radio.
Type Rotary Knob The setting can be adjusted by rotating a round knob.

Squelch Control

Parameter Value Description
Type Menu Item The setting can be adjusted by using the radio's menu system.

Keypad

Parameter Value Description
Lockable Yes The keypad can be configured in a way that disables the function of most keys.
Audible Yes The keypad can be configured to emit a sound each time that a key is pressed.

Display

Parameter Value Description
Location Front The display is located on the front panel of the radio.
Foreground Colors 9
Background Colors 9 The number of background colors from which to choose.

Internal Speaker

Parameter Value Description
Location Top The internal speaker is located at the top surface of the radio.

Microphone Port

Parameter Value Description
Location Front Panel The microphone port is located on the front panel of the radio.
Connector Type RJ45-Female 8-Position RJ45 Female

Headset Port

Parameter Value Description
Location Rear Panel The headset port is located on the rear panel of the radio.
Connector Type 3.5mm TRRS

Data Port

Parameter Value Description
Location Rear Panel The data port is located on the rear panel of the radio.
Connector Type 3.5mm Stereo Mini Female

Programming Port

Parameter Value Description
Location Rear Panel The programming port is located on the rear panel of the radio.
Connector Type Stereo Mini Phone 3.5 mm stereo phone jack

Antenna Port

Parameter Value Description
Location Rear Panel The antenna port is located on the rear panel of the radio.
Connector Type UHF-Female UHF Female (SO-239)
Impedance 50 Ω

Power Supply Port

Parameter Value Description
Connector Type T-Style-Male 2-Position Male T-Style Power Connector
Supply Voltage 13.8 V +/-15%
Current Draw 7 A max The maximum amount of current drawn from the power source by the device.
