Product Documentation

Document	Pages	Notes
External Photos	4
G11S User Manual	33
Internal Photos	4

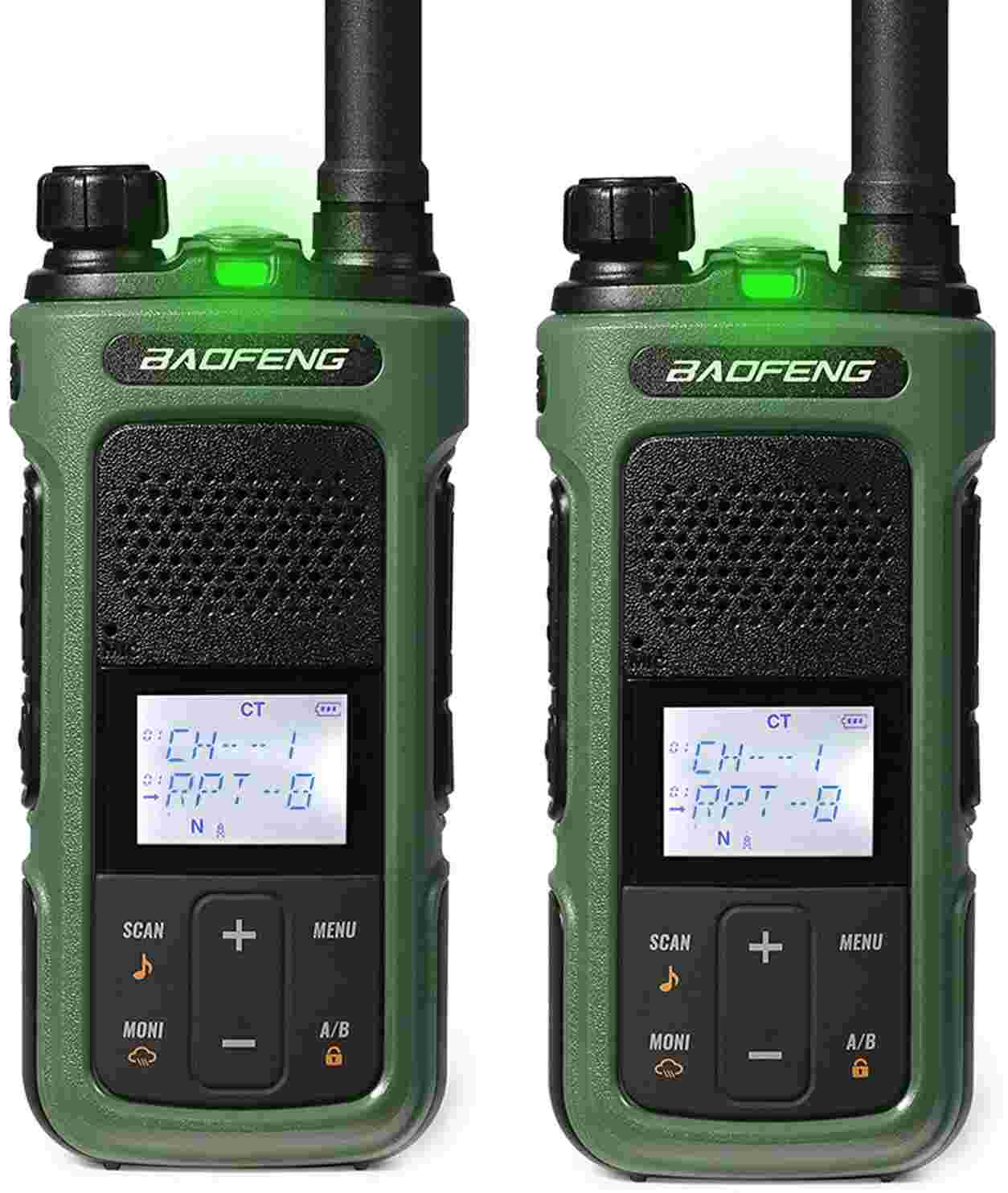

Product

Parameter	Value	Description
Form Factor	Handheld	The radio is designed to be held in one hand while in use.
Type	Transceiver	The radio can receive and transmit signals.
Width	1.25 in	The distance between the left and right surfaces of the main body of the radio, excluding protrusions.
Height	5.1 in	The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions.
Depth	1.2 in	The distance between the front and rear surfaces of the main body of the radio, excluding protrusions.
Weight	8.6 oz	The mass of the main body of the radio, including the removable battery or removable front panel.
Operating Temperature	-20 to 60 °C	The range of temperatures in which the product is designed to be operated.

Tuning System

Parameter	Value	Description
Repeater Capable	Yes	Memory channels can have different transmit and receive frequencies, facilitating the use of radio repeaters.

Audio System

Parameter	Value	Description
Voice Prompts	Yes

Receiver

Parameter	Value	Description
Personal Bands	FRS	Family Radio Service (462.550 - 467.7125 MHz)
	GMRS	General Mobile Radio Service (462.550 - 467.725 MHz)
Broadcast Band	FM	FM broadcast band (88 - 108 MHz)
Amateur Band	70cm	Amateur 70 cm band (420.000 - 450.000 MHz)
LMR Band	UHF	Land mobile UHF band (450 - 470 MHz)
Marine Band	UHF	Marine UHF Band (457.5125 - 457.5875 and 467.5125 - 467.5875)
Operating Frequency	400 to 470 MHz	The range of frequencies that can be tuned by the receiver.
Sensitivity Threshold	0.25 µV max	The magnitude of the smallest RF signal that a receiver can detect.
Audio Distortion	5 % max

Transmitter

Parameter	Value	Description
Personal Band	GMRS	General Mobile Radio Service (462.550 - 467.725 MHz)
Output Power	3 W max	The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation.
Measured Power	3.08 W max	Actual output power measured by a telecommunication certification body (TCB) and reported to the Federal Communications Commission.

Keypad

Parameter	Value	Description
Lockable	Yes	The keypad can be configured in a way that disables the function of most keys.

Antenna Port

Parameter	Value	Description
Connector Type	SMA-Female	SMA Female

Battery

Parameter	Value	Description
Charge Capacity	1500 mAh	The amount of charge stored in a fully-charged battery.
Energy Capacity	11.1 Wh	The amount of energy stored in a fully-charged battery.
Type	Li-Ion	Lithium Ferrous Phosphate (LiFePO4)
Voltage	7.4 V	The nominal voltage of a battery.
Charging Method	USB-C
