Product Documentation
| Document | Pages | Notes |
|---|---|---|
| External Photos | 4 | |
| Internal Photos | 6 | |
| Product Brochure | 2 | |
| User Manual | 119 |
Product
| Parameter | Value | Description |
|---|---|---|

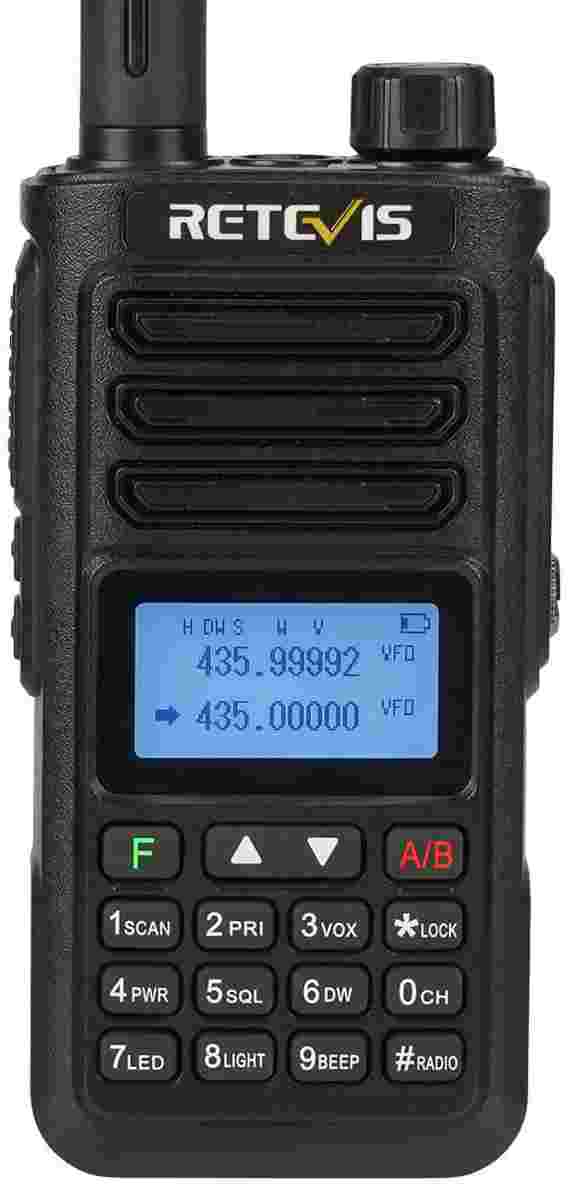

| Form Factor | Handheld | The radio is designed to be held in one hand while in use. |
| Type | Transceiver | The radio can receive and transmit signals. |
| Width | 62 mm | The distance between the left and right surfaces of the main body of the radio, excluding protrusions. |
| Height | 126 mm | The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions. |
| Depth | 43 mm | The distance between the front and rear surfaces of the main body of the radio, excluding protrusions. |
| Weight | 295 g | The mass of the main body of the radio, including the removable battery or removable front panel. |
| Operating Temperature | -10 to 50 °C | The range of temperatures in which the product is designed to be operated. |
| Solid Ingress Protection | IP6x | The product is dust-tight. |
| Liquid Ingress Protection | IPx8 | The product is protected against the effects of continuous immersion in water. |
Tuning System
| Parameter | Value | Description |
|---|---|---|
| Channel Capacity | 200 max | The number of memory channels that can be programmed into the radio. |
| Channel Bandwidths | 12.5 kHz | The radio's tuning system supports channel spacing of 12.5 kHz. |
| 25 kHz | The radio's tuning system supports channel spacing of 25 kHz. | |
| Dual Watch | Yes | The radio can monitor two frequencies at the same time. |
| Repeater Capable | Yes | Memory channels can have different transmit and receive frequencies, facilitating the use of radio repeaters. |
| VFO Mode | Yes | The radio allows direct frequency selection. |
Signaling System
| Parameter | Value | Description |
|---|---|---|
| Signaling Methods | 2-Tone | Two-tone sequential signaling |
| 5-Tone | 5/6/7-tone sequential signaling | |
| DTMF | Dual Tone Multi Frequency | |
| Remote Actions | Stun | Temporarily disables the receiving radio until it is revived. |
| Kill | Permanently disables the receiving radio until a technician reprograms it. | |
| Revive | Restores a stunned radio to normal functionality. | |
| CTCSS Tones | 44 | The number of distinct CTCSS tones supported by the radio. |
| DCS Codes | 106 | The number of distinct DCS codes supported by the radio. |
| PTT ID | Yes | The radio supports Automatic Number Identification |
| Emergency Call | Yes | Sends out a distress call to other radios. May also place the radio in hands-free mode to so the user can describe his situation without needing to continually press the PTT button. |
| Roger Beep | Yes | Indicates that a transmitter is capable of emitting a short beep at the end of each transmission. |
Audio System
| Parameter | Value | Description |
|---|---|---|
| Output Power | 500 mW max | |
| Digital Noise Reduction | Yes | Radio incorporates digital noise reduction technology. |
| Voice Inversion | Yes | An analog method of obscuring the content of a transmission. |
| Voice Prompts | Yes |
Receiver
| Parameter | Value | Description |
|---|---|---|
| Personal Bands | FRS | Family Radio Service (462.550 - 467.7125 MHz) |
| GMRS | General Mobile Radio Service (462.550 - 467.725 MHz) | |
| Broadcast Band | FM | FM broadcast band (88 - 108 MHz) |
| Amateur Bands | 2m | Amateur 2-meter band (144.000 - 148.000 MHz) |
| 70cm | Amateur 70 cm band (420.000 - 450.000 MHz) | |
| LMR Bands | VHF | Land mobile VHF high band (150 - 174 MHz) |
| UHF | Land mobile UHF band (450 - 470 MHz) | |
| Marine Bands | VHF | Marine VHF band (156.050 - 162.025 MHz) |
| UHF | Marine UHF Band (457.5125 - 457.5875 and 467.5125 - 467.5875) | |
| Operating Frequency | 65 to 108 MHz | The range of frequencies that can be tuned by the receiver. |
| 136 to 174 MHz | ||
| 400 to 480 MHz | ||
| Sensitivity Threshold | 0.2 µV max | The magnitude of the smallest RF signal that a receiver can detect. |
| Adjacent Channel Selectivity | 65 dB min | The ability of a receiver to discriminate between a desired signal and an undesired signal in an adjacent channel. |
| Intermodulation Rejection | 55 dB min | The ability of a receiver to reject intermodulation products produced by the mixing of two or more signals at the input to the receiver. |
| Audio Distortion | 10 % max | |
| Audio Response | -12.5 to 7 dB | The degree of precision with which the audio signal level of a receiver responds to the frequency deviation of an FM signal. |
Transmitter
| Parameter | Value | Description | Notes |
|---|---|---|---|
| Amateur Bands | 2m | Amateur 2-meter band (144.000 - 148.000 MHz) | |
| 70cm | Amateur 70 cm band (420.000 - 450.000 MHz) | ||
| Operating Frequency | 144 to 148 MHz | ||
| 420 to 450 MHz | |||
| Frequency Drift | 5 ppm | The amount that a transmitter's frequency varies from its nominal value. | |
| Output Power | 10 W max | The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation. | |
| Intermodulation Distortion | -40 dB max | ||
| Spurious Emissions | -48.44 dB max | Emission on a frequency or frequencies which are outside the necessary bandwidth. | Calculated |
| VOX | Yes | ||
| Busy Channel Lockout | Yes | Indicates that a transmitter can be prevented from operating when a receiver detects activity on the tuned frequency. | |
| Timeout Timer | Yes | Indicates that a radio is capable of limiting the length of each transmission. |
Channel Selector
| Parameter | Value | Description |
|---|---|---|
| Location | Front | The channel selector is located on the front panel of the radio. |
| Type | Keypad | The setting can be adjusted by using a numeric keypad. |
Channel Selector
| Parameter | Value | Description |
|---|---|---|
| Location | Front | The channel selector is located on the front panel of the radio. |
| Type | Up/Down Buttons | The setting can be increased or decreased by pressing a pair of buttons. |
Volume Control
| Parameter | Value | Description |
|---|---|---|
| Location | Top | The volume control is located on the top of the radio. |
| Type | Rotary Knob | The setting can be adjusted by rotating a round knob. |
Squelch Control
| Parameter | Value | Description |
|---|---|---|
| Location | Menu | The squelch level can be adjusted through the radio's menu system. |
Keypad
| Parameter | Value | Description |
|---|---|---|
| Lockable | The keypad can be configured in a way that disables the function of most keys. | |
| Audible | Yes | The keypad can be configured to emit a sound each time that a key is pressed. |
Display
| Parameter | Value | Description |
|---|---|---|
| Type | LCD | Liquid Crystal Display with Fluorescent Backlighting |
| Backlit | Yes | The display device is illuminated for better readability in poor lighting conditions. |
| Dimmable | Yes | The brightness of the display's backlight can be adjusted by the user. |
Internal Speaker
| Parameter | Value | Description |
|---|---|---|
| Location | Front | The internal speaker is located behind the front panel of the radio. |
Microphone Port
| Parameter | Value | Description |
|---|---|---|
| Location | Right Side | The microphone ports is located on the right side of the radio. |
Speaker Port
| Parameter | Value | Description |
|---|---|---|
| Location | Right Side | The speaker port is located on the right side of the radio. |
Headset Port
| Parameter | Value | Description |
|---|---|---|
| Location | Right Side | The headset port is located on the right side of the radio. |
Programming Port
| Parameter | Value | Description |
|---|---|---|
| Location | Right Side | The programming port is located on the right side of the radio. |
Antenna Port
| Parameter | Value | Description |
|---|---|---|
| Location | Top | The antenna port is located on top of the radio. |
| Connector Type | SMA-Female | SMA Female |
Battery
| Parameter | Value | Description |
|---|---|---|
| Charge Capacity | 2500 mAh | The amount of charge stored in a fully-charged battery. |
| Energy Capacity | 18.5 Wh | The amount of energy stored in a fully-charged battery. |
| Type | Li-Ion | Lithium Ferrous Phosphate (LiFePO4) |
| Voltage | 7.4 V | The nominal voltage of a battery. |
| Voltage Indicator | Yes | The device provides a visible or audible indication of the battery voltage. |
| Removable | Yes | Battery is removable, allowing a discharged battery to be quickly replaced with a fresh one. |
| Charging Methods | Drop-In | |
| USB-C |
Bonus Features
| Parameter | Value | Description |
|---|---|---|
| LED Flashlight | Yes | The radio contains an LED that can be switched on to provide a small amount of task lighting. |
