Product Documentation

Document	Pages	Notes
KT-8900 External Photos
KT-8900 Internal Photos
KT-8900 User Manual

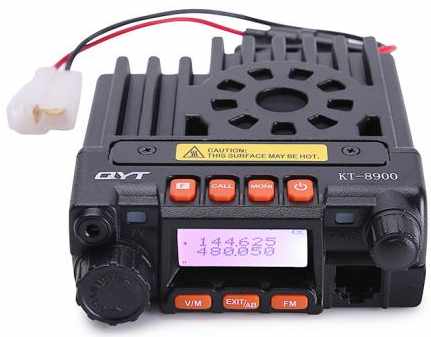

Product

Parameter	Value	Description
Form Factor	Fixed-Mount	The radio is designed to be permanently attached to a surface using fasteners.
Type	Transceiver	The radio can receive and transmit signals.
Width	98 mm	The distance between the left and right surfaces of the main body of the radio, excluding protrusions.
Height	43 mm	The distance between the top and bottom surfaces of the main body of the radio, excluding protrusions.
Depth	126 mm	The distance between the front and rear surfaces of the main body of the radio, excluding protrusions.
Weight	448 g	The mass of the main body of the radio, including the removable battery or removable front panel.
Operating Temperature	-20 to 60 °C	The range of temperatures in which the product is designed to be operated.

Tuning System

Parameter	Value	Description
Channel Capacity	23 max	The number of memory channels that can be programmed into the radio.
Channel Bandwidths	12.5 kHz	The radio's tuning system supports channel spacing of 12.5 kHz.
	25 kHz	The radio's tuning system supports channel spacing of 25 kHz.
Dual Watch	Yes	The radio can monitor two frequencies at the same time.
Triple Watch	Yes	The radio can monitor three frequencies at the same time.
Quad Watch	Yes	The radio can monitor four frequencies at the same time.
Scan Types	Full	The radio's tuning system can scan the full range of operating frequencies.
	Channel	The radio's tuning system can scan some or all of the channels programmed into its memory.
Repeater Capable	Yes	Memory channels can have different transmit and receive frequencies, facilitating the use of radio repeaters.
Reverse Function	Yes	The transmit and receiver frequencies used by a repeater channel can be temporarily reversed by the user.
Repeater Forwarding	Yes	The transceiver is equipped to permit creation of a simple repeater by directly connecting two units which serve as receiver and transmitter.
VFO Mode	Yes	The radio allows direct frequency selection.

Signaling System

Parameter	Value	Description
Signaling Methods	2-Tone	Two-tone sequential signaling
	5-Tone	5/6/7-tone sequential signaling
	DTMF	Dual Tone Multi Frequency
Remote Actions	Stun	Temporarily disables the receiving radio until it is revived.
	Kill	Permanently disables the receiving radio until a technician reprograms it.
	Revive	Restores a stunned radio to normal functionality.
PTT ID	Yes	The radio supports Automatic Number Identification

Audio System

Parameter	Value	Description
Silent Mode	Yes	The radio emits no beeps or other sounds apart from received audio.
Output Power	2 W max
Voice Inversion	Yes	An analog method of obscuring the content of a transmission.
Voice Prompts	Yes

Receiver

Parameter	Conditions	Value	Description
	Tuning System
	Channel Bandwidth
Personal Bands		FRS	Family Radio Service (462.550 - 467.7125 MHz)
		GMRS	General Mobile Radio Service (462.550 - 467.725 MHz)
Broadcast Band		FM	FM broadcast band (88 - 108 MHz)
Amateur Band		2m	Amateur 2-meter band (144.000 - 148.000 MHz)
LMR Bands		VHF	Land mobile VHF high band (150 - 174 MHz)
		UHF	Land mobile UHF band (450 - 470 MHz)
Marine Bands		VHF	Marine VHF band (156.050 - 162.025 MHz)
		UHF	Marine UHF Band (457.5125 - 457.5875 and 467.5125 - 467.5875)
Operating Frequency		88 to 108 MHz	The range of frequencies that can be tuned by the receiver.
		136 to 174 MHz
		400 to 470 MHz
Sensitivity Threshold	12.5 kHz	0.35 µV max	The magnitude of the smallest RF signal that a receiver can detect.
	25 kHz	0.25 µV max
Adjacent Channel Selectivity	12.5 kHz	60 dB min	The ability of a receiver to discriminate between a desired signal and an undesired signal in an adjacent channel.
	25 kHz	70 dB min
SNR	12.5 kHz	40 dB min	Signal-to-Noise Ratio
	25 kHz	45 dB min
Spurious Rejection		70 dB min	The ratio of a receiver's response to a signal at a desired frequency and its response to signals at other frequencies that cause a response.
Intermodulation Rejection	12.5 kHz	60 dB min	The ability of a receiver to reject intermodulation products produced by the mixing of two or more signals at the input to the receiver.
	25 kHz	65 dB min
Audio Distortion		5 % max
Audio Response		-3 to 1 dB	The degree of precision with which the audio signal level of a receiver responds to the frequency deviation of an FM signal.
Monitor Function		Yes	The radio allows the user to manually open the squelch.

Transmitter

Parameter	Conditions	Value	Description
	Tuning System
	Channel Bandwidth
Personal Band		GMRS	General Mobile Radio Service (462.550 - 467.725 MHz)
Operating Frequency		462.55 to 462.725 MHz
		467.55 to 467.725 MHz
Frequency Drift		2.5 ppm	The amount that a transmitter's frequency varies from its nominal value.
Output Power		20 W max	The maximum RF power that a transmitter can produce, as reported by the manufacturer in product documentation.
Measured Power		13.96 W max	Actual output power measured by a telecommunication certification body (TCB) and reported to the Federal Communications Commission.
Signal-to- Noise Ratio	12.5 kHz	36 dB min
	25 kHz	40 dB min
Spurious Emissions		-60 dB max	Emission on a frequency or frequencies which are outside the necessary bandwidth.
Adjacent Channel Power	12.5 kHz	-60 dB max
	25 kHz	-70 dB max
Audio Response		-3 to 1 dB	The degree of precision with which the frequency deviation of a transmitter responds to a designated audio frequency signal level.
Audio Distortion		5 % max
Emission Types	12.5 kHz	11K0F3E	11 kHz occupied bandwidth, FM analog voice
	25 kHz	16K0F3E	16 kHz occupied bandwidth, FM analog voice
Busy Channel Lockout		Yes	Indicates that a transmitter can be prevented from operating when a receiver detects activity on the tuned frequency.
Timeout Timer		Yes	Indicates that a radio is capable of limiting the length of each transmission.

Channel Selector (Front Knob)

Parameter	Value	Description
Location	Front	The channel selector is located on the front panel of the radio.
Type	Rotary Knob	The setting can be adjusted by rotating a round knob.

Channel Selector (Mic Buttons)

Parameter	Value	Description
Location	Mic	The channel selector is located on a hand microphone.
Type	Up/Down Buttons	The setting can be increased or decreased by pressing a pair of buttons.

Channel Selector (Mic Keypad)

Parameter	Value	Description
Location	Mic	The channel selector is located on a hand microphone.
Type	Keypad	The setting can be adjusted by using a numeric keypad.

Volume Control

Parameter	Value	Description
Location	Front	The volume control is located on the front panel of the radio.
Type	Rotary Knob	The setting can be adjusted by rotating a round knob.

Squelch Control

Parameter	Value	Description
Type	Menu Item	The setting can be adjusted by using the radio's menu system.

Keypad

Parameter	Value	Description
Location	Mic	The keypad is located on a handheld microphone.
Lockable	Yes	The keypad can be configured in a way that disables the function of most keys.

Display

Parameter	Value	Description
Location	Front	The display is located on the front panel of the radio.
Type	LCD	Liquid Crystal Display with Fluorescent Backlighting
Foreground Colors	9
Background Colors	9	The number of background colors from which to choose.

Internal Speaker

Parameter	Value	Description
Location	Top	The internal speaker is located at the top surface of the radio.

Microphone Port

Parameter	Value	Description
Location	Front Panel	The microphone port is located on the front panel of the radio.
Connector Type	RJ45-Female	8-Position RJ45 Female

Headset Port

Parameter	Value	Description
Location	Rear Panel	The headset port is located on the rear panel of the radio.
Connector Type	3.5mm TRRS

Data Port

Parameter	Value	Description
Location	Rear Panel	The data port is located on the rear panel of the radio.
Connector Type	3.5mm Stereo Mini Female

Programming Port

Parameter	Value	Description
Location	Rear Panel	The programming port is located on the rear panel of the radio.
Connector Type	Stereo Mini Phone	3.5 mm stereo phone jack

Antenna Port

Parameter	Value	Description
Location	Rear Panel	The antenna port is located on the rear panel of the radio.
Connector Type	UHF-Female	UHF Female (SO-239)
Impedance	50 Ω

Power Supply Port

Parameter	Value	Description
Connector Type	T-Style-Male	2-Position Male T-Style Power Connector
Supply Voltage	13.8 V +/-15%
Current Draw	7 A max	The maximum amount of current drawn from the power source by the device.
Voltage Indicator	Yes
