Product Documentation
| Document | Pages | Notes |
|---|---|---|
| Datasheet | 1 |

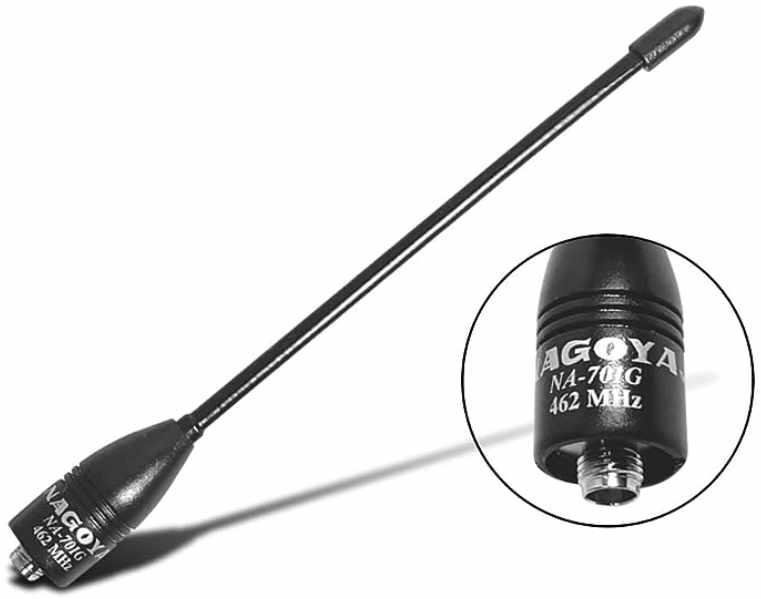

Product
| Parameter | Value | Description |
|---|---|---|
| Type | Handheld | |
| Center Frequency | 462 MHz | |
| Topology | 1/4 Wave | |
| Height | 14 cm | The vertical distance between the top and bottom surfaces of an item that is placed in its conventional orientation. |
| Personal Band | GMRS | General Mobile Radio Service (462.550 - 467.725 MHz) |
| Operating Temperature | -30 to 85 °C | The range of temperatures in which the product is designed to be operated. |
Signal Propagation
| Parameter | Value | Description |
|---|---|---|
| Power | 10 W max | The input power limit of an antenna. |
| Gain | 2.15 dBi | The ability of an antenna to radiate RF energy in a specific direction. |
| ERP | 10 W max | Effective Radiated Power |
| Pattern Type | Omnidirectional | |
| Polarization | Vertical |
Feedpoint
| Parameter | Value | Description |
|---|---|---|
| Connector Type | SMA-Female | SMA Female |
| Impedance | 50 Ω | The effective resistance of an antenna to alternating current at a specific frequency due to the combined effects of ohmic resistance, inductance, and capacitance. |
