Product Documentation

Document	Pages	Notes
Instruction Manual	1
Product Brochure	1

Product

Parameter	Value	Description

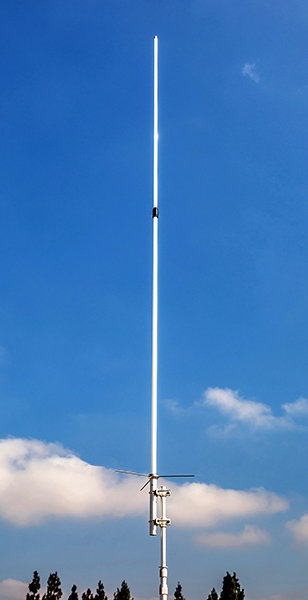

Type	Base Vertical
Height	125 in	The vertical distance between the top and bottom surfaces of an item that is placed in its conventional orientation.
Weight	2.8125 lb	The weight of the item.
Wind Surface Area	66 in²
Wind Survival	112 mph max

Band Coverage

Parameter	Value	Description
Operating Frequency	460 to 470 MHz
Center Frequency	465 MHz
Bandwidth	10 MHz	The frequency range occupied by a modulated carrier.
Personal Band	GMRS	General Mobile Radio Service (462.550 - 467.725 MHz)
Land Mobile Band	UHF	Land mobile UHF band (450 - 470 MHz)

Signal Propagation

Parameter	Value	Description
Power	200 W max	The input power limit of an antenna.
Gain	9 dBi	The ability of an antenna to radiate RF energy in a specific direction.
ERP	968.345 W max	Effective Radiated Power
Pattern Type	Omnidirectional

Feedpoint

Parameter	Value	Description
Connector Type	N-Female	Type N Female

Radome

Parameter	Value	Description
Material	Fiberglass
Sections	2	The number of radome sections.
Color	White
