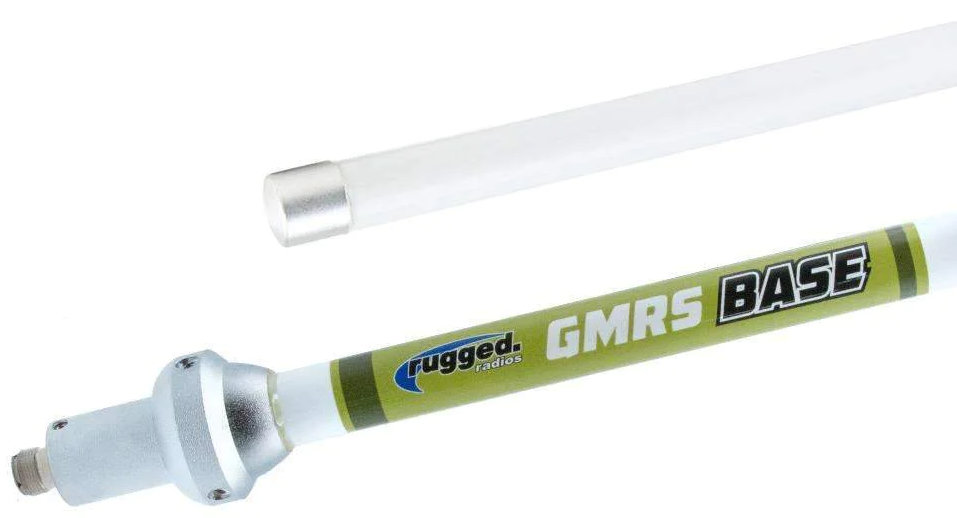

Rugged Radios GMRS-BASE Base Station GMRS Tuned Fiberglass Antenna

Product Documentation

Document Pages Notes
Datasheet 1

Product

Parameter Value Description
Type Base Vertical
Center Frequency 462 MHz
Topology 5/8 Wave
Height 1.75 m The vertical distance between the top and bottom surfaces of an item that is placed in its conventional orientation.
Personal Band GMRS General Mobile Radio Service (462.550 - 467.725 MHz)
Weight 1 kg The weight of the item.
Wind Survival 130 mph max

Signal Propagation

Parameter Value Description
Power 200 W max The input power limit of an antenna.
Gain 6.5 dBd The ability of an antenna to radiate RF energy in a specific direction.
ERP 893.367 W max Effective Radiated Power
Pattern Type Omnidirectional

Feedpoint

Parameter Value Description
Connector Type UHF-Female UHF Female (SO-239)
Impedance 50 Ω The effective resistance of an antenna to alternating current at a specific frequency due to the combined effects of ohmic resistance, inductance, and capacitance.

Radome

Parameter Value Description
Material Fiberglass
Sections 1 The number of radome sections.
Color White
