Product Documentation
| Document | Pages | Notes |
|---|---|---|
| Manufacturer's Product Page | 1 |

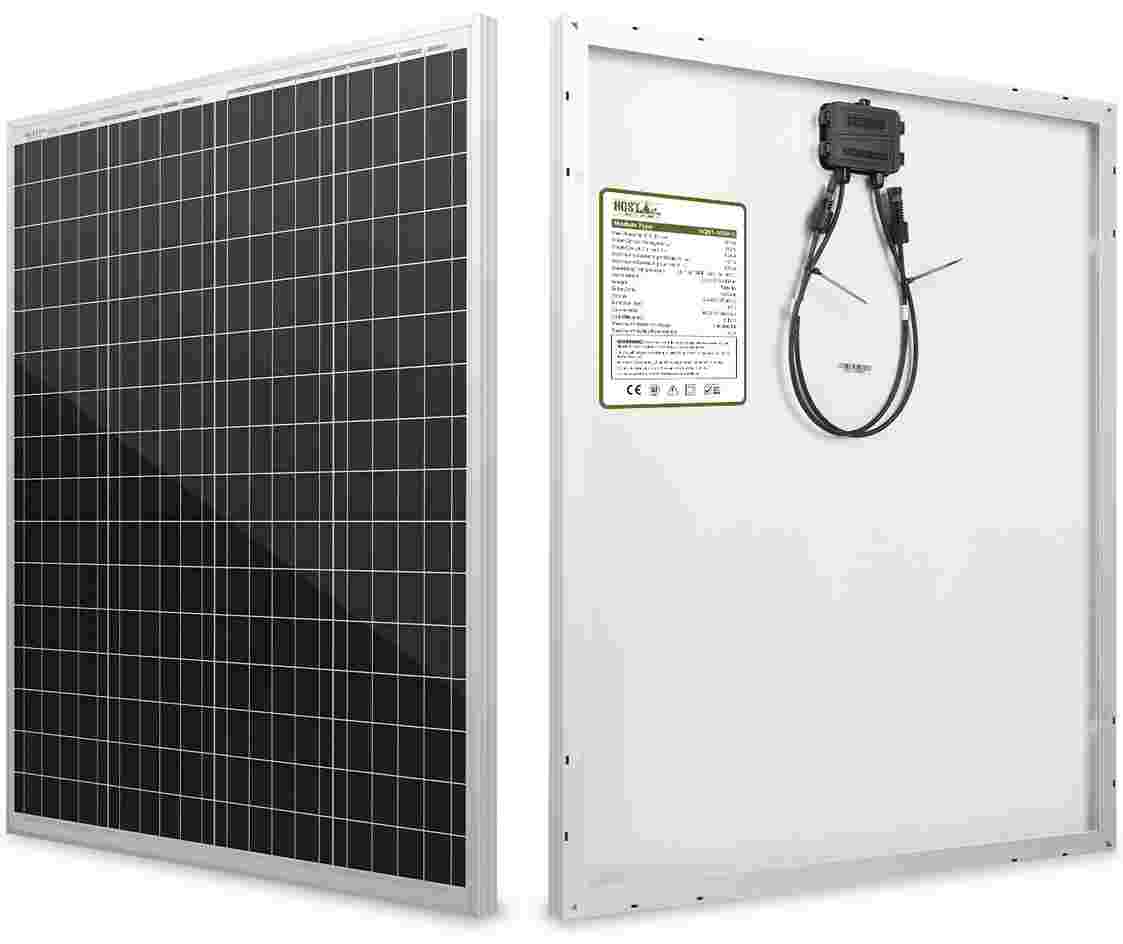

Product
| Parameter | Value | Description |
|---|---|---|
| Style | Rigid | |
| Frame Color | Silver | |
| Shape | Rectangular | |
| Height | 35.6 in | The vertical distance between the top and bottom surfaces of an item that is placed in its conventional orientation. |
| Width | 25.9 in | The horizontal distance between the left and right surfaces of an item that is placed in its conventional orientation. |
| Depth | 1.18 in | The horizontal distance between the front and rear surfaces of an item that is placed in its conventional orientation. |
| Area | 922.04 in² | |
| Weight | 15.65 lb | The weight of the item. |
| Wind Load | 2400 Pa max | |
| Snow Load | 5400 Pa max |
Cell
| Parameter | Value | Description |
|---|---|---|
| Count | 64 | |
| Type | Poly Si | The cells are made of Polycrystalline Silicon. |
| Bus Bars | 5 |
Power
| Parameter | Value | Description |
|---|---|---|
| Rated Power at STC | 100 W | Output Power at Maximum Power Point under Standard Test Conditions |
| Power Density at STC | 0.108455165 W/in² | Power Density under Standard Test Conditions |
| Efficiency at STC | 16.8067 % | Module Efficiency under Standard Test Conditions |
Voltage
| Parameter | Value | Description |
|---|---|---|
| Rated Voltage at STC | 18.1 V | Output Voltage at Maximum Power Point under Standard Test Conditions |
| Open Circuit Voltage at STC | 21.6 V max | Open Circuit Voltage under Standard Test Conditions |
| System Voltage | 600 V max |
Current
| Parameter | Value | Description |
|---|---|---|
| Rated Current at STC | 5.53 A | Output Current at Maximum Power Point under Standard Test Conditions |
| Short Circuit Current at STC | 5.94 A max | Short Circuit Voltage under Standard Test Conditions |
| System Fuse Rating | 15 A max |
Temperature
| Parameter | Value | Description |
|---|---|---|
| Operating Temperature | -40 to 194 °F | The range of temperatures in which the product is designed to be operated. |
Junction Box
| Parameter | Value | Description |
|---|---|---|
| Solid Ingress Protection Level | IP6x | The product is dust-tight. |
| Liquid Ingress Protection Level | IPx5 | The product is protected against water jets. |
Positive Lead
| Parameter | Value | Description |
|---|---|---|
| Wire Diameter | 14 AWG (2.5 mm²) | |
| Wire Length | 2 ft | |
| Connector Type | MC4 |
Negative Lead
| Parameter | Value | Description |
|---|---|---|
| Wire Diameter | 14 AWG (2.5 mm²) | |
| Wire Length | 2 ft | |
| Connector Type | MC4 |
