Product Documentation
| Document | Pages | Notes |
|---|---|---|
| Manufacturer's Product Page | 1 |
Product
| Parameter | Value | Description |
|---|---|---|

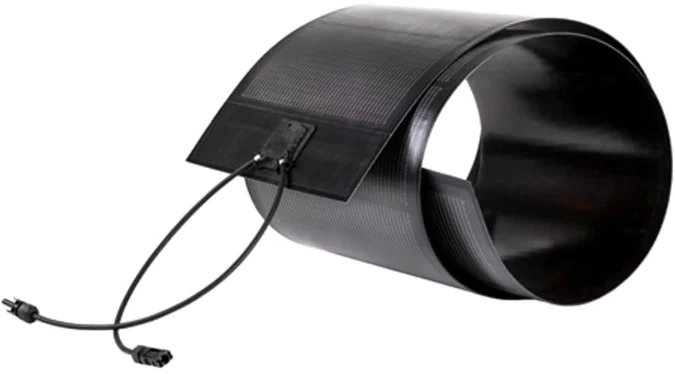

| Style | Flexible | |
| Frame Color | Black | |
| Shape | Rectangular | |
| Height | 67.3 in | The vertical distance between the top and bottom surfaces of an item that is placed in its conventional orientation. |
| Width | 13.8 in | The horizontal distance between the left and right surfaces of an item that is placed in its conventional orientation. |
| Area | 928.74 in² | |
| Weight | 3.8 lb | The weight of the item. |
| Application Class | Class A | The module operates at greater than 50 VDC or 240 W and it can safely be installed in locations accessible by the public. |
Cell
| Parameter | Value | Description |
|---|---|---|
| Type | Thin-Film CIGS | The cells are made of Thin-Film Copper Indium Gallium Selenide. |
Power
| Parameter | Value | Description |
|---|---|---|
| Rated Power at STC | 80 W | Output Power at Maximum Power Point under Standard Test Conditions |
| Power Density at STC | 0.086138 W/in² | Power Density under Standard Test Conditions |
| Efficiency at STC | 13.356 % | Module Efficiency under Standard Test Conditions |
Voltage
| Parameter | Value | Description |
|---|---|---|
| Rated Voltage at STC | 19.6 V | Output Voltage at Maximum Power Point under Standard Test Conditions |
| Open Circuit Voltage at STC | 23.8 V max | Open Circuit Voltage under Standard Test Conditions |
| System Voltage | 1000 V max |
Current
| Parameter | Value | Description |
|---|---|---|
| Rated Current at STC | 4.08 A | Output Current at Maximum Power Point under Standard Test Conditions |
| Short Circuit Current at STC | 4.32 A max | Short Circuit Voltage under Standard Test Conditions |
Temperature
| Parameter | Value | Description |
|---|---|---|
| Operating Temperature | -40 to 85 °C | The range of temperatures in which the product is designed to be operated. |
Positive Lead
| Parameter | Value | Description |
|---|---|---|
| Connector Type | MC4 |
Negative Lead
| Parameter | Value | Description |
|---|---|---|
| Connector Type | MC4 |
