Product Documentation

Document	Pages	Notes
Datasheet	2

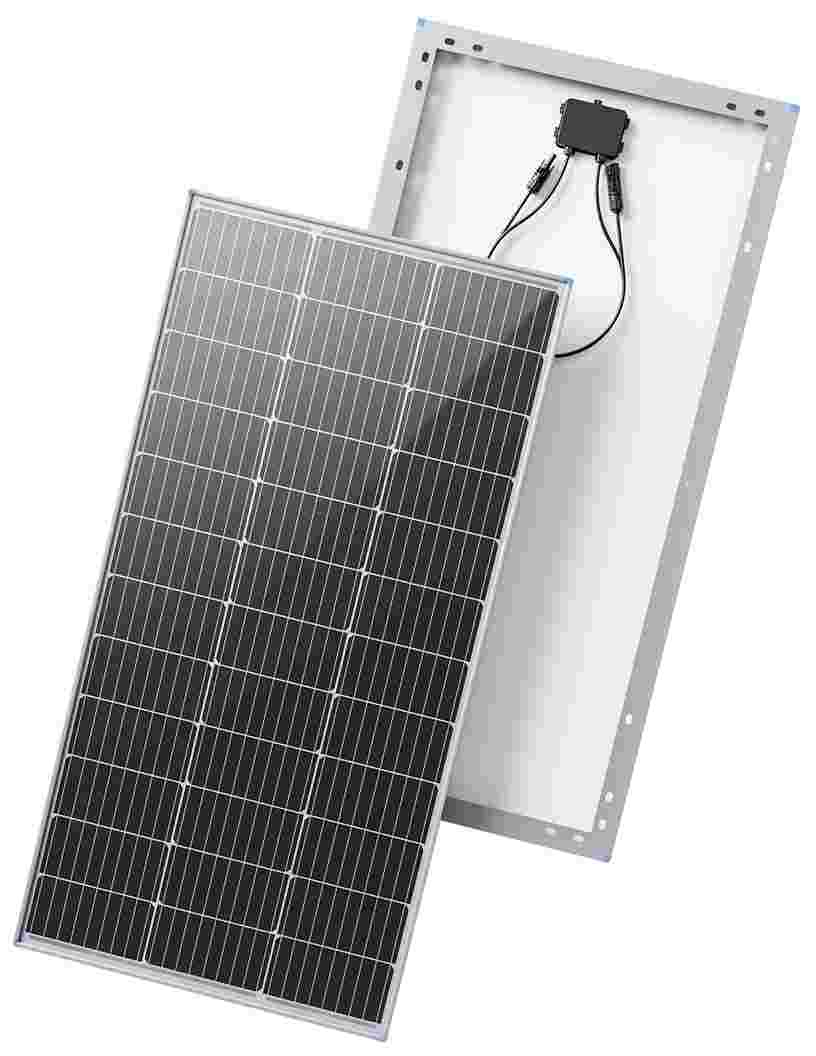

Product

Parameter	Value	Description
Style	Rigid
Frame Color	Silver
Shape	Rectangular
Height	1062 mm	The vertical distance between the top and bottom surfaces of an item that is placed in its conventional orientation.
Width	530 mm	The horizontal distance between the left and right surfaces of an item that is placed in its conventional orientation.
Depth	35 mm	The horizontal distance between the front and rear surfaces of an item that is placed in its conventional orientation.
Area	562860 mm²
Weight	6.4 kg	The weight of the item.
Wind Load	2400 Pa max
Snow Load	5400 Pa max

Cell

Parameter	Value	Description
Count	36
Type	Mono Si	The cells are made of Monocrystalline Silicon.
Bus Bars	9
Attributes	PERC
	Half-Cut

Power

Parameter	Value	Description
Rated Power at STC	100 W	Output Power at Maximum Power Point under Standard Test Conditions
Power Density at STC	177.664 W/m²	Power Density under Standard Test Conditions
Efficiency at STC	17.8 %	Module Efficiency under Standard Test Conditions

Voltage

Parameter	Value	Description
Rated Voltage at STC	20.4 V	Output Voltage at Maximum Power Point under Standard Test Conditions
Open Circuit Voltage at STC	24.3 V max	Open Circuit Voltage under Standard Test Conditions
System Voltage	600 V max
Open Circuit Voltage at Tmin	30.22 V	The open-circuit voltage at the minimum operating temperature.

Current

Parameter	Value	Description
Rated Current at STC	4.91 A	Output Current at Maximum Power Point under Standard Test Conditions
Short Circuit Current at STC	5.21 A max	Short Circuit Voltage under Standard Test Conditions
System Fuse Rating	15 A max

Temperature

Parameter	Value	Description
Operating Temperature	-40 to 85 °C	The range of temperatures in which the product is designed to be operated.
NOCT	47 °C
Temp Coeff of Power	-0.37 %/°C	Temperature Coefficient of Power
Temp Coeff of Voltage	-0.28 %/°C	Temperature Coefficient of Open-Circuit Voltage
Temp Coeff of Current	0.05 %/°C	Temperature Coefficient of Short-Circuit Current

Junction Box

Parameter	Value	Description
Solid Ingress Protection Level	IP6x	The product is dust-tight.
Liquid Ingress Protection Level	IPx5	The product is protected against water jets.

Positive Lead

Parameter	Value	Description
Wire Diameter	14 AWG (2.5 mm²)
Wire Length	600 mm
Connector Type	MC4

Negative Lead

Parameter	Value	Description
Wire Diameter	14 AWG (2.5 mm²)
Wire Length	600 mm
Connector Type	MC4
