Product Documentation

Document	Pages	Notes
Datasheet	2

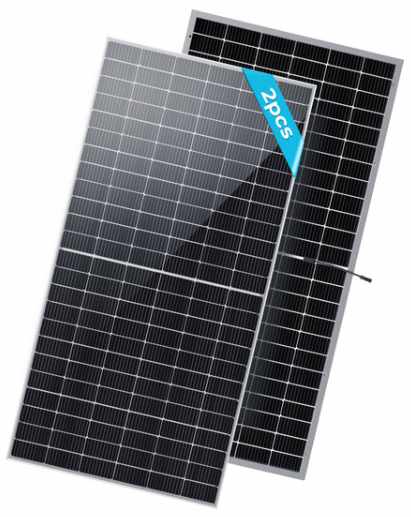

Product

Parameter	Value	Description
Style	Rigid
Frame Color	Silver
Shape	Rectangular
Height	2279 mm	The vertical distance between the top and bottom surfaces of an item that is placed in its conventional orientation.
Width	1134 mm	The horizontal distance between the left and right surfaces of an item that is placed in its conventional orientation.
Depth	35 mm	The horizontal distance between the front and rear surfaces of an item that is placed in its conventional orientation.
Area	2.584386 m²
Weight	28.5 kg	The weight of the item.

Cell

Parameter	Value	Description
Count	144
Type	Mono Si	The cells are made of Monocrystalline Silicon.
Bus Bars	10
Attributes	Bifacial
	PERC
	Half-Cut

Power

Parameter	Value	Description
Rated Power at STC	550 W	Output Power at Maximum Power Point under Standard Test Conditions
Power Density at STC	212.81651 W/m²	Power Density under Standard Test Conditions
Efficiency at STC	21.3 %	Module Efficiency under Standard Test Conditions

Voltage

Parameter	Value	Description
Rated Voltage at STC	41.97 V	Output Voltage at Maximum Power Point under Standard Test Conditions
Open Circuit Voltage at STC	49.95 V max	Open Circuit Voltage under Standard Test Conditions
System Voltage	1500 V max
Open Circuit Voltage at Tmin	61.84 V	The open-circuit voltage at the minimum operating temperature.

Current

Parameter	Value	Description
Rated Current at STC	13.11 A	Output Current at Maximum Power Point under Standard Test Conditions
Short Circuit Current at STC	14.05 A max	Short Circuit Voltage under Standard Test Conditions
System Fuse Rating	25 A max

Temperature

Parameter	Value	Description
Operating Temperature	-40 to 85 °C	The range of temperatures in which the product is designed to be operated.
NOCT	45 °C
Temp Coeff of Power	-0.35 %/°C	Temperature Coefficient of Power
Temp Coeff of Voltage	-0.28 %/°C	Temperature Coefficient of Open-Circuit Voltage
Temp Coeff of Current	0.05 %/°C	Temperature Coefficient of Short-Circuit Current

Junction Box

Parameter	Value	Description
Solid Ingress Protection Level	IP6x	The product is dust-tight.
Liquid Ingress Protection Level	IPx8	The product is protected against the effects of continuous immersion in water.

Positive Lead

Parameter	Value	Description
Wire Diameter	12 AWG (4 mm²)
Wire Length	300 mm
Connector Type	MC4

Negative Lead

Parameter	Value	Description
Wire Diameter	12 AWG (4 mm²)
Wire Length	300 mm
Connector Type	MC4
